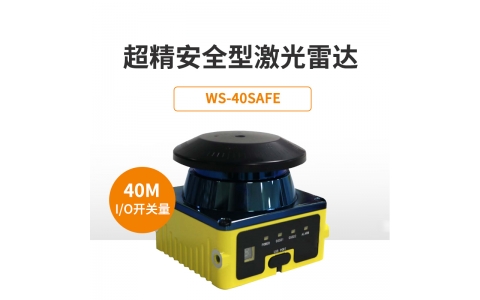

規格型號：WS-30/40SAFE

電源電壓：DC9V~30V    電源功率：< 3W

檢測角度：270°        檢測分辨角：0.12°

檢測誤差：±2cm（白色）

重復精度：±6mm

檢測范圍：半徑20m@70%反射率(白色物體)

               半徑8m@10%反射率(黑色物體)

響應時間：42ms

防護等級：IP65

工作溫度：-30°C~50°C

工作濕度：35%RH~85%RH

距離參數：30M 40M

掃描頻率：21Hz

CLASS 1  Witty Robotics  LIDAR PRODUCT

WR（WittyRobotics）Witty SENSOR系列激光雷達

國內較早量產的脈沖TOF原理測距型激光雷達，通過IP65，通過各種變化各種嚴苛測試，脈沖激光光源穩定，光束均勻，點云數據形成的物體掃描邊界清晰，抖動誤差小超低功耗，最新長距雷達產品可以做到120米檢測范圍，0.06-0.12角分辨率，每秒最高30萬點云密度輸出。獨有的散熱機械設計結構，能延長產品的使用壽命，5萬小時工業級使用壽命時間，產品品質穩定，減少產品的維護保養和維修的時間成本和人力成本。高精度、高分辨率、高速測量。激光建圖常見的拖尾、噪點能夠得到有效抑制，減少人工時間與人力成本，方便程序員操作和維護保養。操作界面簡單，產品使用方便易操作，可拆卸窗口設計，有劃傷情況時，免于整機的報廢，極大提高產品的使用率和減少購買成本。

WR (WittyRobotics) Witty SENSOR series LIDAR

The first domestic mass-produced pulse TOF principle ranging lidar, Products are strictly related to the test of IP65.The pulse laser source is more stable, the light beam is more uniformly dispersed,the scanning boundary of the object formed by point cloud data is more clear, the jitter error is small and ultra-low power consumption. the latest long-range radar products can achieve a detection range of 120 meters, 0.06-0.12 angular resolution, and a maximum output of 300,000 point cloud density per second.The unique heat dissipation mechanical design structure can extend the service life of the product, 50,000 hours of industrial-grade service life, stable product quality, and reduce the time cost and labor cost of product maintenance and repair.

High precision, high resolution, high speed measurement enabled the common trailing and noise points of laser drawing can be effectively suppressed, reducing labor time and labor cost, and facilitating programmer operation and maintenance.

The operation interface is simple, the product is easy to use and easy to operate, and the detachable window design can avoid the scrapping of the whole machine when there is a scratch, which greatly improves the product utilization rate and reduces the purchasecost.

獲取產品使用效果與反饋資料，請聯系400-1515-230
